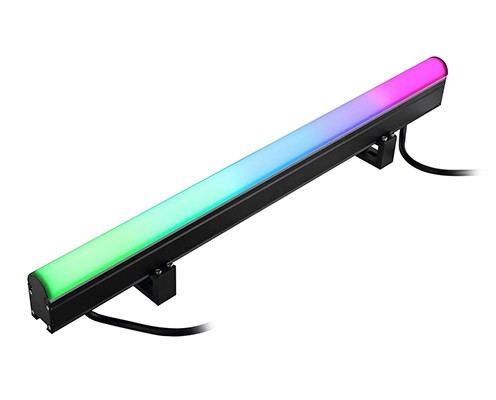

Waterproof DMX512 Control RGBW LED Linear Light DC24V Full Color with Opal PC Diffuser W28MM

Direct Vilew Linear Opal PC Diffuser W28MM is an Exterior precision-control linear direct view luminaire with intelligent RGB light. They are specifically designed for direct view applications to create long ribbons of color and color-changing effects, and are equipped with a round diffuser and segment control for low resolution content and their high lumen output makes them highly visible in daylight situations. Variable resolution offers the precision to display large scale video, graphics, and intricately designed effects in various architectural, retail, and entertainment settings and other applications needing similar lighting enhancements.

Email: info@archled.net

Product: Waterproof DMX512 Control RGBW LED Linear Light DC24V Full Color with Opal PC Diffuser W28MM

Model: LM28

Dimension: 1000mm*28mm*81mm

Housing: Alumnium

Diffuser: Opal PC

Wattage: 10W

Voltage: 15-24VDC

Color: Static White/Tunable White/RGB/RGBW

Lighting Source: 60Leds SMD3535

Chip Brand: Epistar/Cree/Osram

Beam Angle: 165 Degree

Pixels Per Meter: 1/5/10/20 Pixels

Control Mode: DMX512

Address Setting: Auto/Manual

IP Rating: IP66

Warranty: Two Years

Working Temperature: -30℃ to +50℃

Remarks:Length/Power/Pixels/Led Qty can be customized

ColorStatic WhiteTunable WhiteRGBRGBW
Light SourceSMD 3535 LEDSMD 3535 LEDSMD 3535 LEDSMD 3535 LED
LED Source ColorW:3000KW:3000KR:619-624nmR:619-624nm

CRI for White LEDRa>80Ra>80Ra>80
LED QTY60LEDs/m120LEDs/m60LEDs/m120LEDs/m
Beam Angle110° Clear Cover
165° Black Diffuser/Opal Diffuser/Acrylic Diffuser
Input Voltage15-24VDC15-24VDC15-24VDC15-24VDC
Power Consumption10W/Meter10W/Meter10W/Meter10W/Meter
PWM Frequency1KHz@16-Bit Grayscale
256KHz@8-Bit Grayscale
AddressingAuto Addressing or RDM Manual Addressing
Pixels20Pixels/m10Pixels/m20Pixels/m10Pixels per meter
10Pixels/m5Pixels/m10Pixels/m5Pixels per meter
5Pixels/m1Pixel/m5Pixels/m1Pixel per meter
MaterialAluminum 6063 with UV Protected Cover
Finish ColorPowder coating, Black/Grey Silver or Custom RAL Color
DiffuserClear/PC Black/PC Opal/Acrylic


With Brackets

1000mm*28mm*61.7mm(for Clear Cover)
1000mm*28mm*75mm(for PMMA Dome)
1000mm*28mm*81mm(for PC Dome)
Cable EntryBottom Entry, Side Left Entry or Side Right Entry
MountingFixed Mounting Brackets
Contact us if you need customized brackets
Mounting OrientationHorizontal or vertical
Packing20pcs 1000mm per Box. Package Size 103*29.5*26cm
20pcs 1220mm per Box. Package Size 125*29.5*26cm
Operating Temperature-30℃ to +50℃
Storage Temperature-40℃ to +70℃
Humidity0-90% non-condensing
IP RatingDry, Damp, Wet locations IP66
Warranty2Years Limited Warranty from the Date of Manufacture
Contact us if you need extended warranty


- High-end design with Slim lamp body, suitable for multiple installation

- Aluminum 6063 with UV Protected diffuser, anodized and hardened treatment, corrosion-resistant

- Inner organic epoxy resin glue sealed,Static-free and Lightning protection

- Back fixing holder,convenient in installation and maintenance

- Seamless connection among lamps and no dark space at the joint

- More safety in installation and maintenance under DC 24V

- Various type available, Static White/Tunable White/RGB/RGBW

- Standard DMX512 signal

- Energy-saving ,Low-cost maintenance ,Long-life span
